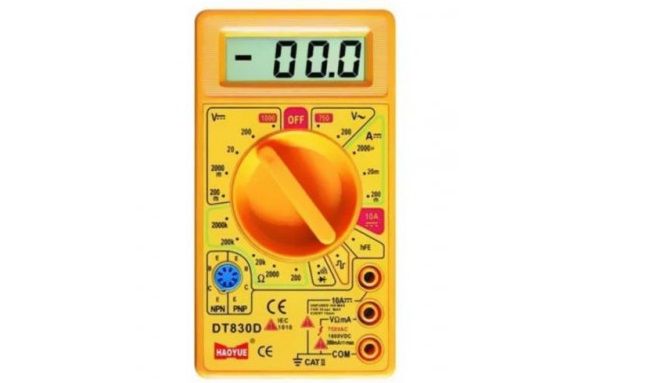

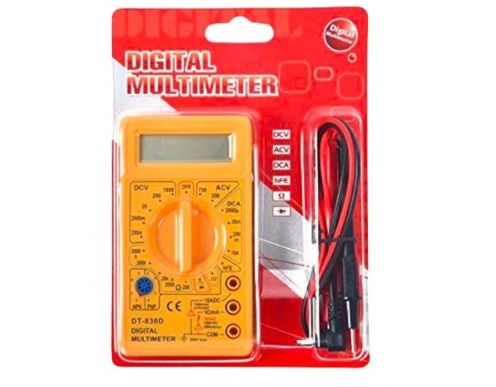

DT830D - 1000V DC/750V AC Digital Multimeter

Digital Multimeter with 1M Ohm Impedance is Standard Diagnostic Tool to Measure Two or More Electrical Values Such as Voltage, Current and Resistance. It uses digital and logic technology using integrated circuit technology to offer additional test capabilities.

They are Widely Used in electrical measurements, AC and DC voltage, AC and DC current, and resistance, voltmeter, ammeter, and ohmmeter, voltages and voltage fluctuations in homes or offices.

Features:-

• An Easy to Read 3.5 Digit LCD Display.
• Ability of Displaying Measured Electrical Values Quickly Without any Computations.
• Auto-Polarity for Direct Current Readings.
• Auto Ranging which Selects the Correct Range for the Quantity Under Test to Get Most Significant Digits.

Specifications:-

• Type: Digital
• Size: 21X15X5cm
• Voltage Rating: 1000Vdc/750Vac Rms
• Impedance: 1MOhm
• Requires a 9V Battery
• Capacity: 200 mV, 2000mV, 20V, 200V and 1000V (DC Voltage), 200µA, 2000µA, 20mA, 200mA and 10A (DC Current), 200V and 750V (AC Voltage), 200, 2000 Ohms, 20, 200 and 2000KOhms (Resistance)
